Nguripake Turèk Cnc Lathe CK46 52 76TWS

Minangka pabrik, Jingfusi ngasilake kualitas Turret Cnc Lathe CK46 52 76TWS kanggo para pelanggan. Produk iki wis diproses kanthi pirang-pirang proses presisi, sing ora mung njamin operasi stabil saka peralatan, nanging uga layanan layanan sakabehe alat mesin. Kinerja biaya sakabehe dhuwur banget, efisiensi alat mesin lan biaya pangopènan ing wektu mengko banget.Welcome kanggo hubungi kita!

Model:CK46/52

Kirim Pitakonan

Deskripsi Produk

The Turning Turret CNC Lathe CK46 52 76TWS from Jingfusi supplier is suitable for rough and finish machining of materials such as stainless steel, titanium alloy, carbon steel, and mold steel. Ing ngisor iki minangka sorotan liyane saka produk iki:

· Dilengkapi patang fungsi ngunci kanggo nyegah nuduh lan miring nalika nyusut, mesthekake akurasi mesin.
· Casting integral ngalami stoces

Spesifikasi utama

Model lathe		unit	Ck46tws	Ck52tws	Ck76tws	Remart
Kapasitas pangolahan	Diameter ayunan maksimal ing amben	mm	Q400	0400	0400
	Diameter diuripake maksimal	mm	Ø200	Ø250	Ø300	A2-5
	Dawane maksimal	mm	380	380	380
Spindle	Spindle Hydraulic Chuck	Ing	6 "	8 "	10 "
	Dhuwur tengah spindle saka lemah	mm	1080	1080	1080
	Irung spindle	-	A2-5	A2-6	A2-8
	Diameteripun bore spindle	mm	②56	Q66	Q86
	Diameter materi bar maksimum	mm	45	Ø51	072
	Kacepetan spindle maksimal	rpm	4500	4000	2000
	Power Motor Spindle / Tork	Kw / n.m	11kw / 72NMOR 15kW / 95.5nm	15kw / 95.5nm utawa 15kw / 143nm	15kw / 143nm utawa 15kw / 192NM

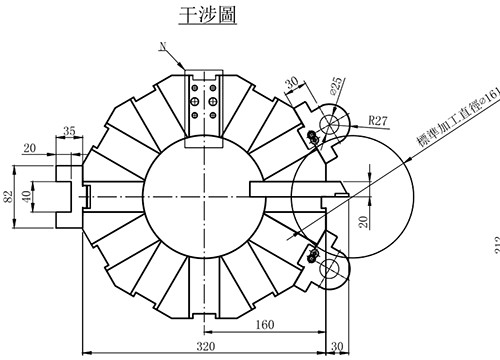

Turet servo	Model Turret		80-12t	80-12t	80-12t
Axis feed	Kacepetan travel max.fast	m / my	24	24	24
	Power / Tark Motor Axis Axis	Kw / n.m	· Casting integral ngalami stoces	· Casting integral ngalami stoces	Yaskawa 1.3kw / 8.34NM utawa Syntec 1.8kW / dirating 11.5nm
	Screws BLL XZ-AXIS C3-Grad	-	32/32	32/32	32/32
	X / Z-Axis Roller Guide Roller	-	35/35	35/35	35/35
	TURET MOTO POWER / TORQUE	mm	230	230	230
	Z lelungan sing efektif	mm	400	400	400
Tailstock	Lelungan buntut tunggal	mm	400	400	400
Tailstock	Bolongan Conical Pin	Mk	Morse # 5	Morse # 5	Morse # 5
Peralatan peralatan	Bobote mesin net	kg	3500	3600	3700
	Total mesin mesin	Kw	11	14.5	18.5
	Mesin LXW × H	mm	2300 × 1600 × 1700	2300 × 1600 × 1700	2300 × 1600 × 1700

Alat Mesin yaiku Constanty dioptimalake; mangga deleng data nyata mesin kasebut kanggo paramèter ing ndhuwur.

Barang pilihan

Item Konfigurasi		Ck46tws	Ck52tws	Ck76tws
SPISLE MAIN	Spindle mekanik	●	●	●
SPISLE MAIN	Spindle listrik	O	O	O
pengontrol	Controller Syntec	●	●	●
pengontrol	Fanuc Controller	O	O	O
Axis feed	Yaskawa	●	●	●
Axis feed	Syntec	O	O	O
2.4 / 11.5	Narik Clamp	●	●	●
2.4 / 11.5	A2-5	O	O	O
Peralatan bantu	Piranti dipakani	O	O	O
	Conveyor chip	O	O	O
	Robot otomatis	O	O	O
	Pemisahan Minyak Minyak	O	O	O
